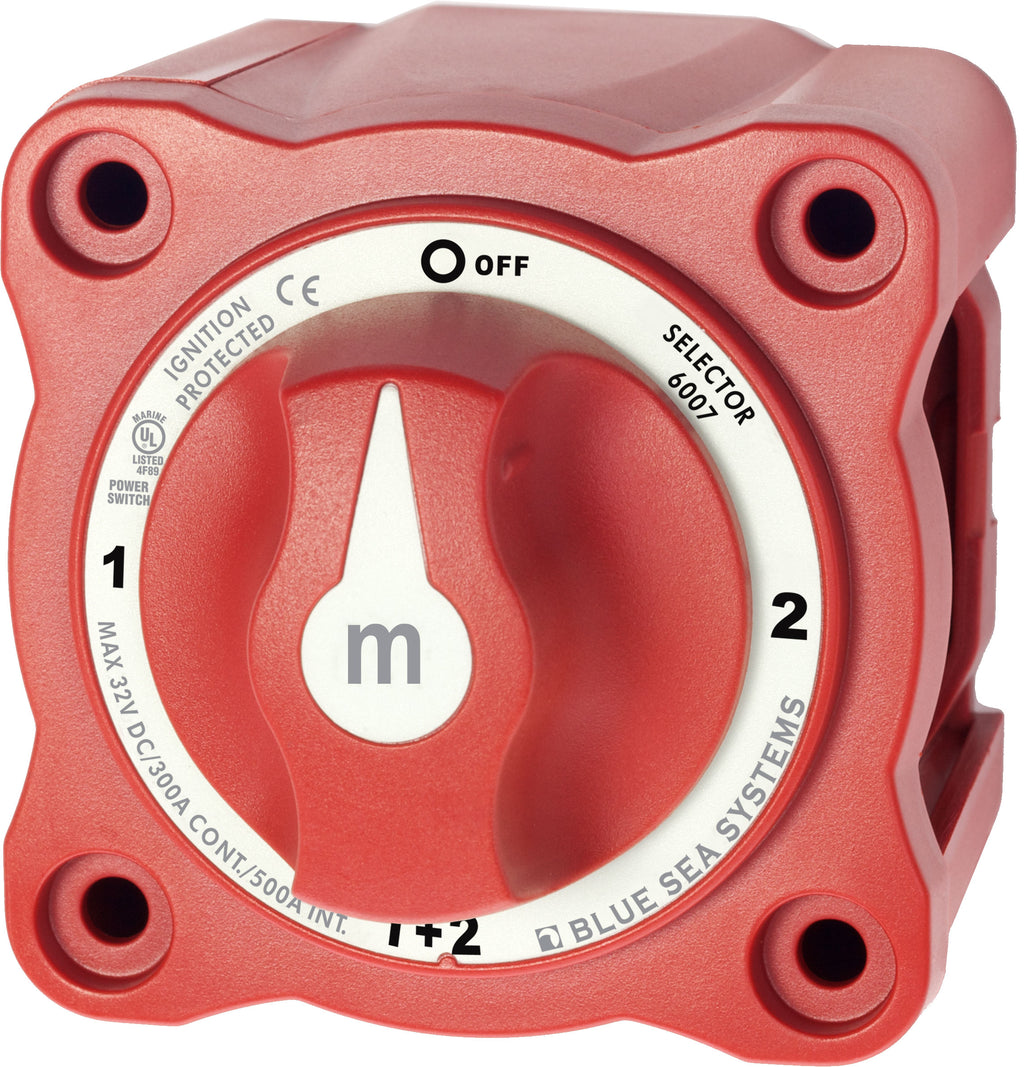

Description
Features:
Make before break contact design allows switching between battery banks without power interruption
-Ignition protected—safe for installation aboard gasoline powered boats
-Case design allows surface, front panel, or rear panel mounting
-Isolating cover with snap-on sections protects rear contacts
-3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
-7/8" (22.22mm) stud length to accept multiple cable terminals -Ideal for marine or RV applications
-Molded in durable reinforced polycarbonate
-Tactile textures indicate knob position by feel only
-Label with international ON/OFF legends
-Removable key or knob remains positively retained
-ICON label set included for circuit identification
Specifications:
-Cranking Rating: 10 sec. 1,500 Amps
-Continuous Rating 300 Amps
-Terminal Stud Size 3/8"-16 (M10)
-Intermittent Rating: 5 min. 500 Amps
-Terminal Stud Torque 120 in-lb (13.56 N·m) max.
-Cable Size to Meet Ratings 4/0 AWG (95mm²)
-Maximum Voltage Rating 48 Volts DC
-Cable Clearance For 4/0 AWG Cables 1.12" (28.4mm)
-Agency Standards UL Listed - UL 1107 electric power switches Meets UL 1500 and SAE J1171 external ignition protection requirements
-Mounting Holes Accept #10 Screw
-Agency Standards CE Marked
-Weight Lb (Kg) 0.77 (0.35)
Make before break contact design allows switching between battery banks without power interruption
-Ignition protected—safe for installation aboard gasoline powered boats
-Case design allows surface, front panel, or rear panel mounting
-Isolating cover with snap-on sections protects rear contacts
-3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
-7/8" (22.22mm) stud length to accept multiple cable terminals -Ideal for marine or RV applications
-Molded in durable reinforced polycarbonate
-Tactile textures indicate knob position by feel only
-Label with international ON/OFF legends
-Removable key or knob remains positively retained
-ICON label set included for circuit identification
Specifications:
-Cranking Rating: 10 sec. 1,500 Amps
-Continuous Rating 300 Amps
-Terminal Stud Size 3/8"-16 (M10)
-Intermittent Rating: 5 min. 500 Amps
-Terminal Stud Torque 120 in-lb (13.56 N·m) max.
-Cable Size to Meet Ratings 4/0 AWG (95mm²)
-Maximum Voltage Rating 48 Volts DC
-Cable Clearance For 4/0 AWG Cables 1.12" (28.4mm)
-Agency Standards UL Listed - UL 1107 electric power switches Meets UL 1500 and SAE J1171 external ignition protection requirements
-Mounting Holes Accept #10 Screw
-Agency Standards CE Marked
-Weight Lb (Kg) 0.77 (0.35)
